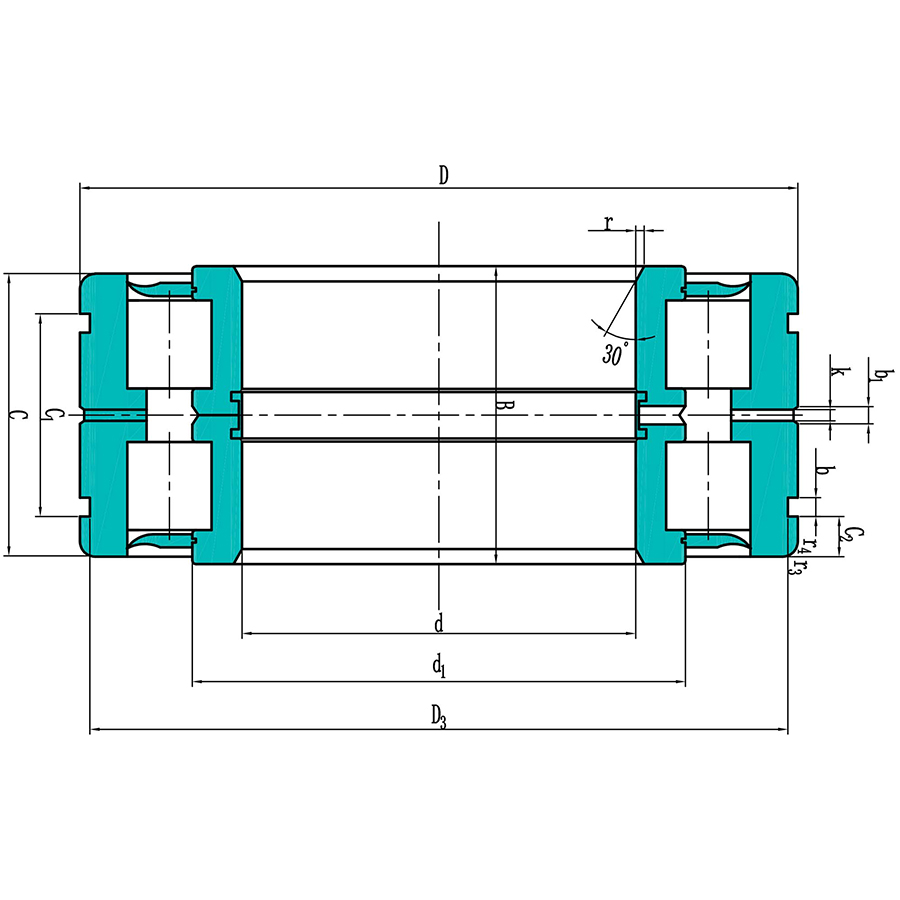

Sealed double row full complement cylindrical roller bearings

Изображения могут отличаться от продукта. Подробнее см. технические характеристики.

Стандарт

GB,ASTM/AISI,ГОСТ,BS,JIS,NF,DIN / VDEh,DIN / VDEh

Материал

GCr15/100Cr6/Bearing Steel

Диаметр внутреннего кольца

25-190mm

Диаметр наружного кольца

47-260mm

Вес

0.23-31.5kg

Бренд

QIBR/OEM/Neutral

Упаковка

QIBR/Standard Industrial Package/OEM

Применения

commonly used in heavy-duty applications where high radial loads are present, such as industrial gearboxes, rolling mills, and large electric motors.

Filters

NO. Product Product Number Наружный диаметр (D) Внутренний диаметр (d) Ширина (B) Вес
1 NNF NNF 5004 ADB-2LSV 42 mm 20 mm 30 mm 0.2 kg
2 NNF NNF 5005 ADB-2LSV 47 mm 25 mm 30 mm 0.24 kg
3 NNF NNF 5006 ADB-2LSV 55 mm 30 mm 34 mm 0.37 kg
4 NNF NNF 5007 ADB-2LSV 62 mm 35 mm 36 mm 0.48 kg
5 NNF NNF 5008 ADB-2LSV 68 mm 40 mm 38 mm 0.56 kg
6 NNF NNF 5009 ADB-2LSV 75 mm 45 mm 40 mm 0.7 kg
7 NNF NNF 5010 ADB-2LSV 80 mm 50 mm 40 mm 0.76 kg
8 NNF NNF 5011 ADB-2LSV 90 mm 55 mm 46 mm 1.2 kg
9 NNF NNF 5012 ADB-2LSV 95 mm 60 mm 46 mm 1.25 kg
10 NNF NNF 5013 ADB-2LSV 100 mm 65 mmDistance between two snap ring grooves of the outer ring outside surface 46 mm 1.35 kg
11 NNF NNF 5014 ADB-2LSV 110 mm 70 mm 54 mm 1.85 kg
12 NNF NNF 5015 ADB-2LSV 115 mm 75 mm 54 mm 1.95 kg
13 NNF NNF 5016 B-2LS 125 mm 80 mm 60 mm 2.7 kg
14 NNF NNF 5017 B-2LS 130 mm 85 mm 60 mm 2.85 kg
15 NNF NNF 5018 B-2LS 140 mm 90 mm 67 mm 3.7 kg
16 NNF NNF 5019 B-2LS 145 mm 95 mm 67 mm 3.9 kg
17 NNF NNF 5020 B-2LS 150 mm 100 mm 67 mm 3.95 kg
18 NNF NNF 5022 B-2LS 170 mm 110 mm 80 mm 6.45 kg
19 NNF NNF 5024 B-2LS 180 mm 120 mm 80 mm 6.9 kg
20 319426 319426 B-2LS 190 mm 130 mm 80 mm 7.3 kg
21 NNF NNF 5026 B-2LS 200 mm 130 mm 95 mm 10.5 kg
22 319428 319428 DA-2LS 200 mm 140 mm 80 mm 8 kg
23 NNF NNF 5028 B-2LS 210 mm 140 mm 95 mm 11 kg
24 319430 319430 B-2LS 210 mm 150 mm 80 mm 8.4 kg
25 NNF NNF 5030 B-2LS 225 mm 150 mm 100 mm 13.5 kg
26 319432 319432 DA-2LS 220 mm 160 mm 80 mm 8.8 kg
27 NNF NNF 5032 B-2LS 240 mm 160 mm 109 mm 16.5 kg
28 319434 319434 B-2LS 230 mm 170 mm 80 mm 9.2 kg
29 NNF NNF 5034 B-2LS 260 mm 170 mm 122 mm 22.5 kg
30 319436 319436 DA-2LS 240 mm 180 mm 80 mm 9.8 kg
31 NNF NNF 5036 B-2LS 280 mm 180 mm 136 mm 31 kg
32 319438 319438 DA-2LS 260 mm 190 mm 80 mm 12.5 kg
33 NNF NNF 5038 B-2LS 290 mm 190 mm 136 mm 31.5 kg
34 319440 319440 B-2LS 270 mm 200 mm 80 mm 13 kg
35 NNF NNF 5040 B-2LS 310 mm 200 mm 150 mm 42 kg
36 319444 319444 B-2LS 300 mm 220 mm 95 mm 19 kg
37 NNF NNF 5044 B-2LS 340 mm 220 mm 160 mm 54 kg
38 319448 319448 B-2LS 320 mm 240 mm 95 mm 20 kg
39 NNF NNF 5048 B-2LS 360 mm 240 mm 160 mm 57.5 kg
40 319452 319452 B-2LS 340 mm 260 mm 95 mm 22 kg
41 NNF NNF 5052 B-2LS 400 mm 260 mm 190 mm 86 kg
42 NNF NNF 5056 B-2LS 420 mm 280 mm 190 mm 91 kg

Features and advantages of QIBR sealed double row full complement cylindrical roller bearings

QIBR sealed double row full complement cylindrical roller bearings solves several key problems in various fields, which are mainly reflected in the following aspects:

1. QIBR sealed double row full complement cylindrical roller bearings high rigidity

QIBR sealed double row full complement cylindrical roller bearings due to the dense contact between the roller and the inner ring, the rigidity of this bearing is relatively strong, which can provide stable support and precise operation.

2. QIBR sealed double row full complement cylindrical roller bearings compact design

QIBR sealed double row full complement cylindrical roller bearings adopts a full-fill design, with a large number of rollers and a relatively small radial size, which can be used in places with limited space.

3. QIBR sealed double row full complement cylindrical roller bearings has high load-bearing capacity

QIBR sealed double row full complement cylindrical roller bearings each roller almost contacts the load surface, so this bearing has a very high load-bearing capacity, especially suitable for applications with heavy loads.

4. QIBR sealed double row full complement cylindrical roller bearings save space

The characteristic of QIBR sealed double row full complement cylindrical roller bearings is that it does not use an outer ring, but bears the load through the contact between the roller and the inner ring. This design makes the bearing more suitable for some applications with limited space.

5. QIBR sealed double row full complement cylindrical roller bearings energy saving

QIBR sealed double row full complement cylindrical roller bearings reduces the friction between the outer ring and the inner ring: the design of direct contact between the roller and the inner ring reduces the friction between the outer ring and the inner ring, further reducing energy loss.

The performance improvement and solution of QIBR sealed double row full complement cylindrical roller bearings

1. Improve corrosion resistance

For bearings that need to work in harsh environments, especially when used in humid, chemical media or salt spray environments, QIBR sealed double row full complement cylindrical roller bearings can use stainless steel or other corrosion-resistant materials, or perform special corrosion-resistant treatment on the bearing surface (such as electroplating, coating, etc.), thereby extending its service life.

2. Optimize rollers

QIBR sealed double row full complement cylindrical roller bearings can reduce contact stress, improve load capacity and durability by optimizing roller shape. Roller surface treatment can reduce friction, improve rolling accuracy and load capacity, and extend the service life of bearings.

3. Improve manufacturing accuracy

QIBR sealed double row full complement cylindrical roller bearings adopt advanced foreign processing equipment and processes, such as precision grinding, superfine grinding, etc., to improve the geometric accuracy of inner and outer rings and rollers, reduce processing errors, and thus improve the rotation accuracy and roughness of bearings.

4. Lubricant optimization

QIBR sealed double row full complement cylindrical roller bearings use high-performance lubricants (such as synthetic oils, solid lubricants, nano lubricants, etc.) to improve lubrication effects and reduce friction and wear. In high temperature environments, the choice of lubricants is particularly important, and high temperature and corrosion-resistant lubricants or greases can be used.

Main application areas of QIBR sealed double row full complement cylindrical rollerbearings

1. Mining machinery

Such as ball mills, crushers, vibrating screens and other equipment. These equipment will generate large radial loads during operation and have harsh working environments. QIBR sealed double row full complement cylindrical rollerbearings can effectively withstand such high loads and have high impact resistance.

2. Heavy machine tools:

In high-precision heavy machine tools, QIBR sealed double row full complement cylindrical rollerbearings are used to withstand heavy loads and ensure the processing accuracy and stability of the machine.

3. Wind turbines:

In important parts such as the main bearings of wind turbines, QIBR sealed double row full complement cylindrical rollerbearings provide excellent load support capabilities. Especially in strong wind and high load working environments, it can ensure the long-term operation of wind power equipment.

4. Drilling equipment

In oil drilling equipment, QIBR sealed double row full complement cylindrical rollerbearings are used to withstand the high load and complex working environment of the drilling rig. It can maintain good operation under extreme conditions.
