The crossed roller bearing is a special type of bearing in which the inner ring is split and the outer ring rotates. Since the separated inner ring or outer ring is equipped with rollers and spacer rings, which are fixed together with the cross roller ring to prevent separation from each other, it is easy to install the cross roller bearing. Since the rollers are arranged in a cross, only one set of crossed roller bearings can bear loads in all directions. Compared with standard bearings, the rigidity is increased by 3 to 4 times. At the same time, because the inner ring or outer ring of the crossed roller bearing is a separate structure, the bearing gap can be adjusted, and even if the preload is applied, high-precision rotational movement can be obtained. Moreover, due to its special structure, it is usually used as an articulated bearing in industrial robots.

Стандарт

GB,ASTM/AISI,ГОСТ,BS,JIS,NF,DIN / VDEh

Материал

52100/100Cr6/SUJ2/Stainless Steel

Бренд

QIBR/OEM/Neutral

Упаковка

QIBR/Standard Industrial Package/OEM

Внутренний диаметр

100~600mm

Наружный диаметр

150~700mm

Применения

Aerospace Industry, Robotics, Medical Devices, Semiconductor Manufacturing Equipment, Optical Equipment, Industrial Machinery, Automotive, etc

QIBR Model Selection

Filters

Вес

Тип

Размер фаски (r)

Внутренний диаметр (d)

Наружный диаметр (D)

Ширина (B B1)

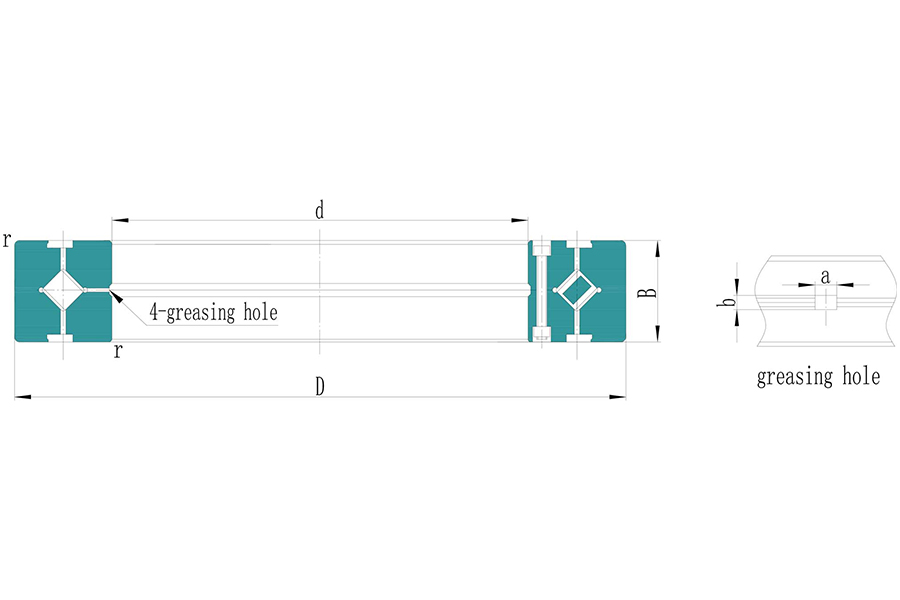

NO.	Product Number	Вес	Тип	Размер фаски (r)	Внутренний диаметр (d)	Наружный диаметр (D)	Ширина (B B1)
1	QRE 10020USP	1.45 kg	Open	1 mm	100 mm	150 mm	20 mm
2	QRE 12025USP	2.62 kg	Open	1.5 mm	120 mm	180 mm	25 mm
3	QRE 15025USP	3.16 kg	Open	1.5 mm	150 mm	210 mm	25 mm
4	QRE 20030USP	6.7 kg	Open	2 mm	200 mm	280 mm	30 mm
5	QRE 25030USP	8.1 kg	Open	2.5 mm	250 mm	330 mm	30 mm
6	QRE 30035USP	13.4 kg	Open	2.5 mm	300 mm	395 mm	35 mm
7	QRE 40040USP	23.5 kg	Open	2.5 mm	400 mm	510 mm	40 mm
8	QRE 50040USP	26 kg	Open	2.5 mm	500 mm	600 mm	40 mm
9	QRE 60040USP	29 kg	Open	3 mm	600 mm	700 mm	40 mm

Characteristics and advantages of QIBR cross cylindrical roller bearing RE-USP series

The QIBR cross cylindrical roller bearing RE-USP series has multiple significant characteristics and advantages, which solve key problems in various fields, mainly reflected in the following aspects;

1. The QIBR cross cylindrical roller bearing RE-USP series has the characteristics of high rigidity and high load-bearing capacity

Although the QIBR cross cylindrical roller bearing RE-USP series is compact in design, it has good rigidity and load-bearing capacity, making it suitable for high load applications.

2. The QIBR cross cylindrical roller bearing RE-USP series has the characteristic of optimized structural design

The QIBR cross cylindrical roller bearing RE-USP series outer ring can be designed as an integrated structure, making it the most suitable for parts that require outer ring rotation accuracy.

3. The QIBR cross cylindrical roller bearing RE-USP series has the characteristics of low friction and high efficiency

The QIBR cross cylindrical roller bearing RE-USP series reduces bearing friction torque and is suitable for use with low driving torque requirements, improving the overall operating efficiency of the equipment.

4. QIBR Cross Cylindrical Roller Bearing RE-USP Series Customized Service

The QIBR cross cylindrical roller bearing RE-USP series usually provides customized services, which can design bearings according to specific needs, meet the special requirements and operating conditions.

Performance Enhancement and Solutions of QIBR Cross Cylindrical Roller Bearing RE-USP Series

1. Effectively improving material properties and enhancing high load-bearing capacity

The production of QIBR cross cylindrical roller bearings RE-USP series uses high-quality steel to manufacture the inner and outer rings and balls, and improves the surface hardness and material properties through vacuum heat treatment, enhancing the bearing's load capacity and service life.

2. Improve manufacturing accuracy and load capacity

The production of QIBR cross cylindrical roller bearings RE-USP series adopts advanced processing equipment and technology from abroad, such as precision grinding, to improve the geometric accuracy of the inner and outer rings and balls, reduce processing errors, and thus improve the rotational accuracy and operational stability of the bearings.

3. Personalization

Provide personalized structural dimension solutions to meet specific performance requirements for QIBR cross cylindrical roller bearing RE-USP series applications in different scenarios. This method not only enriches the standards of bearings, but also provides effective guidance for manufacturers to meet the personalized needs of users.

In summary, by optimizing materials, manufacturing accuracy, personalized design, and other measures, the performance of the QIBR cross cylindrical roller bearing RE-USP series can be significantly improved to meet increasingly demanding application requirements.

The main application of QIBR cross cylindrical roller bearing RE-USP series

High end CNC lathes

The QIBR cross cylindrical roller bearing RE-USP series can improve the machining accuracy of lathes and ensure the production of high-quality parts. Provide stable support and precise workpiece positioning in high-precision machining.

CT machine

The QIBR cross cylindrical roller bearing RE-USP series has high precision and is used for CT machine rotation to ensure high accuracy and stability of the imaging system.

Surgical robot

The application of QIBR cross cylindrical roller bearing RE-USP series in surgical robots is of great significance. It has high accuracy, stability, and reliability, providing precise control and positioning during surgery, which is crucial for the precise operation of surgical robots. Provide precise control and positioning during surgery.
