Изображения могут отличаться от продукта. Подробнее см. технические характеристики.
Стандарт
GB,ASTM/AISI,ГОСТ,BS,JIS,NF,DIN / VDEh
Материал
52100/100Cr6/SUJ2/Stainless Steel
Бренд
QIBR/OEM/Neutral
Упаковка
QIBR/Standard Industrial Package/OEM
Внутренний диаметр
100~600mm
Наружный диаметр
150~700mm
Применения
Aerospace Industry, Robotics, Medical Devices, Semiconductor Manufacturing Equipment, Optical Equipment, Industrial Machinery, Automotive, etc

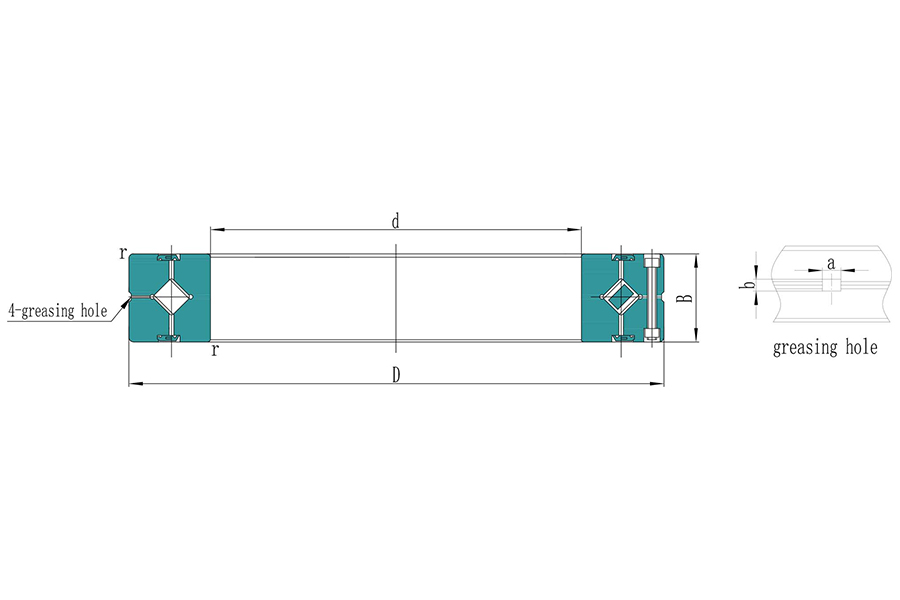

| NO. | Product | Product Number | Вес | Тип | Размер фаски (r) | Внутренний диаметр (d) | Наружный диаметр (D) | Ширина (B B1) |
|---|---|---|---|---|---|---|---|---|
| 1 |
|
QRB 10020 USP UU | 1.45 kg | Two Sides Seal | 1 mm | 100 mm | 150 mm | 20 mm |
| 2 |
|
QRB 12025USP UU | 2.62kg | Two Sides Seal | 1.5 mm | 120 mm | 180 mm | 25 mm |
| 3 |
|
QRB 15025USP UU | 3.16 kg | Two Sides Seal | 1.5 mm | 150 mm | 210 mm | 25 mm |
| 4 |
|
QRB 20030USP UU | 6.7 kg | Two Sides Seal | 2 mm | 200 mm | 280 mm | 30 mm |
| 5 |
|
QRB 25030USP UU | 8.1 kg | Two Sides Seal | 2.5 mm | 250 mm | 330 mm | 30 mm |
| 6 |
|
QRB 30035USP UU | 13.4 kg | Two Sides Seal | 2.5 mm | 300 mm | 395 mm | 35 mm |
| 7 |
|
QRB 40040USP UU | 23.5 kg | Two Sides Seal | 2.5 mm | 400 mm | 510 mm | 40 mm |
| 8 |
|
QRB 50040USP UU | 26 kg | Two Sides Seal | 2.5 mm | 500 mm | 600 mm | 40 mm |
| 9 |
|
QRB 60040USP UU | 29 kg | Two Sides Seal | 3 mm | 600 mm | 700 mm | 40 mm |
Characteristics and advantages of QIBR cross cylindrical roller bearing RB UU-USP series
The QIBR cross cylindrical roller bearing RB UU-USP series has multiple significant characteristics and advantages, which solve key problems in various fields, mainly reflected in the following aspects;
1. The QIBR cross cylindrical roller bearing RB UU-USP series has the characteristics of high rigidity and high load-bearing capacity.
Although the QIBR cross cylindrical roller bearing RB UU-USP series is compact in design, it has good rigidity and load-bearing capacity, making it suitable for high load applications.
2. The QIBR cross cylindrical roller bearing RB UU-USP series has the characteristic of optimized structural design
The QIBR cross cylindrical roller bearing RB UU-USP series inner ring can be designed as an integrated structure, making it the most suitable for parts that require inner ring rotation accuracy.
The QIBR cross cylindrical roller bearing RB UU-USP series has the characteristics of low friction and high efficiency.
The QIBR cross cylindrical roller bearing RB UU-USP series reduces bearing friction torque and is suitable for use with low driving torque requirements, improving the overall operating efficiency of the equipment.
3. QIBR Cross Cylindrical Roller Bearing RB UU-USP Series Customized Service
The QIBR cross cylindrical roller bearing RB UU-USP series usually provides customized services, which can design bearings according to specific needs, meet the special requirements and operating conditions.
Performance Enhancement and Solutions of QIBR Cross Cylindrical Roller Bearing RB UU-USP Series
1. Effectively improving material properties and enhancing high load-bearing capacity
The production of QIBR cross cylindrical roller bearings RB UU-USP series uses high-quality steel to manufacture the inner and outer rings and balls, and improves the surface hardness and material properties through vacuum heat treatment, enhancing the bearing's load capacity and service life.
2. Improve manufacturing accuracy and load capacity
The production of QIBR cross cylindrical roller bearings RB UU-USP series adopts advanced processing equipment and technology from abroad, such as precision grinding, to improve the geometric accuracy of the inner and outer rings and balls, reduce processing errors, and thus improve the rotational accuracy and operational stability of the bearings.
3. Personalization
Provide personalized structural dimension solutions to meet specific performance requirements for QIBR cross cylindrical roller bearing RB UU-USP series applications in different scenarios. This method not only enriches the standards of bearings, but also provides effective guidance for manufacturers to meet the personalized needs of users.
In summary, by optimizing materials, manufacturing accuracy, personalized design, and other measures, the performance of the QIBR cross cylindrical roller bearing RB UU-USP series can be significantly improved to meet increasingly demanding application requirements.
The main application of QIBR cross cylindrical roller bearing RB UU-USP series
High end CNC lathes
The QIBR cross cylindrical roller bearing RB UU-USP series can improve the machining accuracy of lathes and ensure the production of high-quality parts. Provide stable support and precise workpiece positioning in high-precision machining.
CT machine
The QIBR cross cylindrical roller bearing RB UU-USP series has high precision and is used for CT machine rotation to ensure high accuracy and stability of the imaging system.
Surgical robot
The application of QIBR cross cylindrical roller bearing RB UU-USP series in surgical robots is of great significance. It has high accuracy, stability, and reliability, providing precise control and positioning during surgery, which is crucial for the precise operation of surgical robots. Provide precise control and positioning during surgery.
