RB UU
The crossed roller bearing is a special type of bearing in which the inner ring is split and the outer ring rotates. Since the separated inner ring or outer ring is equipped with rollers and spacer rings, which are fixed together with the cross roller ring to prevent separation from each other, it is easy to install the cross roller bearing. Since the rollers are arranged in a cross, only one set of crossed roller bearings can bear loads in all directions.
Compared with standard bearings, the rigidity is increased by 3 to 4 times. At the same time, because the inner ring or outer ring of the crossed roller bearing is a separate structure, the bearing gap can be adjusted, and even if the preload is applied, high-precision rotational movement can be obtained. Moreover, due to its special structure, it is usually used as an articulated bearing in industrial robots.
QIBR

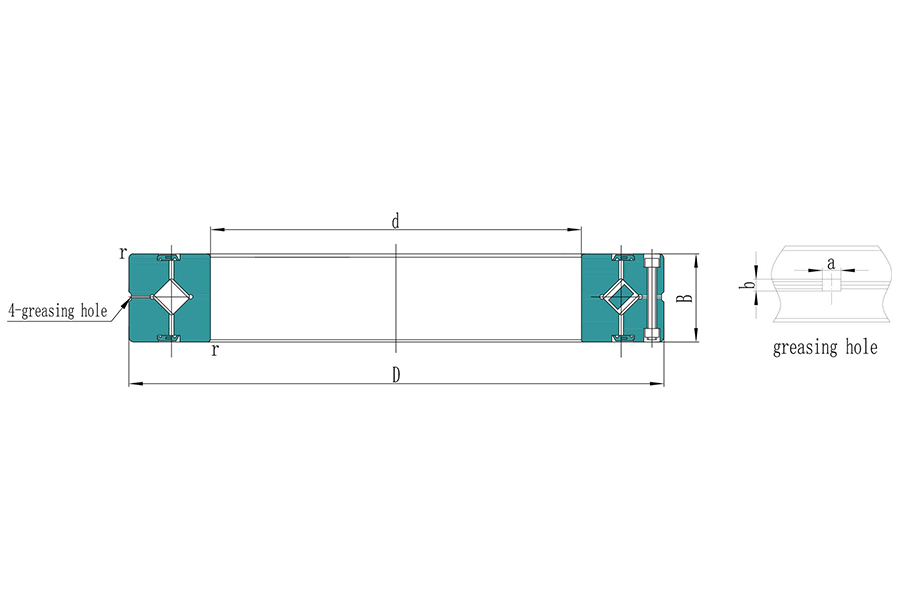

Model Selection
NO. | Product | Product Number | Mass | Type | Chamfer(r min) | Inner Diameter(d) | Outer Diameter(D) | Width(B B1) |
---|---|---|---|---|---|---|---|---|
1 | QRB 2008 UU | 0.04kg | Two Sides Seal | 0.5 | 20mm | 36 | 8mm | |
2 | QRB 2508 UU | 0.05kg | Two Sides Seal | 0.5 | 25mm | 41 | 8mm | |
3 | QRB 3010 UU | 0.12kg | Two Sides Seal | 0.6 | 30mm | 55 | 10mm | |
4 | QRB 3510 UU | 0.13kg | Two Sides Seal | 0.6 | 35mm | 60 | 10mm | |
5 | QRB 4010 UU | 0.16kg | Two Sides Seal | 0.6 | 40mm | 65 | 10mm | |
6 | QRB 4510 UU | 0.17kg | Two Sides Seal | 0.6 | 45mm | 70 | 10mm | |
7 | QRB 5013 UU | 0.27kg | Two Sides Seal | 0.6 | 50mm | 80 | 13mm | |
8 | QRB 6013 UU | 0.3kg | Two Sides Seal | 0.6 | 60mm | 90 | 13mm | |
9 | QRB 7013 UU | 0.35kg | Two Sides Seal | 0.6 | 70mm | 100 | 13mm | |
10 | QRB 8016 UU | 0.7kg | Two Sides Seal | 0.6 | 80mm | 120 | 16mm | |
11 | QRB 9016 UU | 0.75kg | Two Sides Seal | 1 | 90mm | 130 | 16mm | |
12 | QRB 10016 UU | 0.83kg | Two Sides Seal | 1 | 100mm | 140 | 16mm | |
13 | QRB 10020 UU | 1.45kg | Two Sides Seal | 1 | 100mm | 150 | 20mm | |
14 | QRB 11012 UU | 0.4kg | Two Sides Seal | 0.6 | 110mm | 135 | 12mm | |
15 | QRB 11015 UU | 0.75kg | Two Sides Seal | 0.6 | 110mm | 145 | 15mm | |
16 | QRB 11020 UU | 1.56kg | Two Sides Seal | 1 | 110mm | 160 | 20mm | |
17 | QRB 12016 UU | 0.72kg | Two Sides Seal | 0.6 | 120mm | 150 | 16mm | |
18 | QRB 12025 UU | 2.62kg | Two Sides Seal | 1.5 | 120mm | 180 | 25mm | |
19 | QRB 13015 UU | 0.72kg | Two Sides Seal | 0.6 | 130mm | 160 | 15mm | |
20 | QRB 13025 UU | 2.82kg | Two Sides Seal | 1.5 | 130mm | 190 | 25mm | |
21 | QRB 14016 UU | 1kg | Two Sides Seal | 1 | 140mm | 175 | 16mm | |
22 | QRB 14025 UU | 2.96kg | Two Sides Seal | 1.5 | 140mm | 200 | 25mm | |
23 | QRB 15013 UU | 0.68kg | Two Sides Seal | 0.6 | 150mm | 180 | 13mm | |
24 | QRB 15025 UU | 3.16kg | Two Sides Seal | 1.5 | 150mm | 210 | 25mm | |
25 | QRB 15030 UU | 5.3kg | Two Sides Seal | 1.5 | 150mm | 230 | 30mm | |
26 | QRB 16025 UU | 3.14kg | Two Sides Seal | 1.5 | 160mm | 220 | 25mm | |
27 | QRB 17020 UU | 2.21kg | Two Sides Seal | 1.5 | 170mm | 220 | 20mm | |
28 | QRB 18025 UU | 3.44kg | Two Sides Seal | 1.5 | 180mm | 240 | 25mm | |
29 | QRB 19025 UU | 2.99kg | Two Sides Seal | 1 | 190mm | 240 | 25mm | |
30 | QRB 20025 UU | 4kg | Two Sides Seal | 2 | 200mm | 260 | 25mm | |
31 | QRB 20030 UU | 6.7kg | Two Sides Seal | 2 | 200mm | 280 | 30mm | |
32 | QRB 20035 UU | 9.6kg | Two Sides Seal | 2 | 200mm | 295 | 35mm | |
33 | QRB 22025 UU | 4.1kg | Two Sides Seal | 2 | 220mm | 280 | 25mm | |
34 | QRB 24025 UU | 4.5kg | Two Sides Seal | 2.5 | 240mm | 300 | 25mm | |
35 | QRB 25025 UU | 5kg | Two Sides Seal | 2.5 | 250mm | 310 | 25mm | |
36 | QRB 25030 UU | 8.1kg | Two Sides Seal | 2.5 | 250mm | 330 | 30mm | |
37 | QRB 25040 UU | 14.8kg | Two Sides Seal | 2.5 | 250mm | 355 | 40mm | |
38 | QRB 30025 UU | 5.9kg | Two Sides Seal | 2.5 | 300mm | 360 | 25mm | |
39 | QRB 30035 UU | 13.4kg | Two Sides Seal | 2.5 | 300mm | 395 | 35mm | |
40 | QRB 30040 UU | 17.2kg | Two Sides Seal | 2.5 | 300mm | 405 | 40mm | |
41 | QRB 35020 UU | 3.9kg | Two Sides Seal | 2.5 | 350mm | 400 | 20mm | |
42 | QRB 40035 UU | 14.5kg | Two Sides Seal | 2.5 | 400mm | 480 | 35mm | |
43 | QRB 40040 UU | 23.5kg | Two Sides Seal | 2.5 | 400mm | 510 | 40mm | |
44 | QRB 45025 UU | 6.6kg | Two Sides Seal | 1 | 450mm | 500 | 25mm | |
45 | QRB 50025 UU | 7.3kg | Two Sides Seal | 1 | 500mm | 550 | 25mm | |
46 | QRB 50040 UU | 26kg | Two Sides Seal | 2.5 | 500mm | 600 | 40mm | |
47 | QRB 50050 UU | 41.7kg | Two Sides Seal | 2.5 | 500mm | 625 | 50mm | |
48 | QRB 60040 UU | 29kg | Two Sides Seal | 3 | 600mm | 700 | 40mm | |
49 | QRB 70045 UU | 46kg | Two Sides Seal | 3 | 700mm | 815 | 45mm | |
50 | QRB 80070 UU | 105kg | Two Sides Seal | 4 | 800mm | 950 | 70mm | |
51 | QRB 90070 UU | 120kg | Two Sides Seal | 4 | 900mm | 1050 | 70mm | |
52 | QRB 1000110 UU | 360kg | Two Sides Seal | 5 | 1000mm | 1250 | 110mm | |
53 | QRB 1250110 UU | 440kg | Two Sides Seal | 5 | 1250mm | 1500 | 110mm |
