RA-C UU
The crossed roller bearing is a special type of bearing in which the inner ring is split and the outer ring rotates. Since the separated inner ring or outer ring is equipped with rollers and spacer rings, which are fixed together with the cross roller ring to prevent separation from each other, it is easy to install the cross roller bearing. Since the rollers are arranged in a cross, only one set of crossed roller bearings can bear loads in all directions.
Compared with standard bearings, the rigidity is increased by 3 to 4 times. At the same time, because the inner ring or outer ring of the crossed roller bearing is a separate structure, the bearing gap can be adjusted, and even if the preload is applied, high-precision rotational movement can be obtained. Moreover, due to its special structure, it is usually used as an articulated bearing in industrial robots.
QIBR
Model Selection

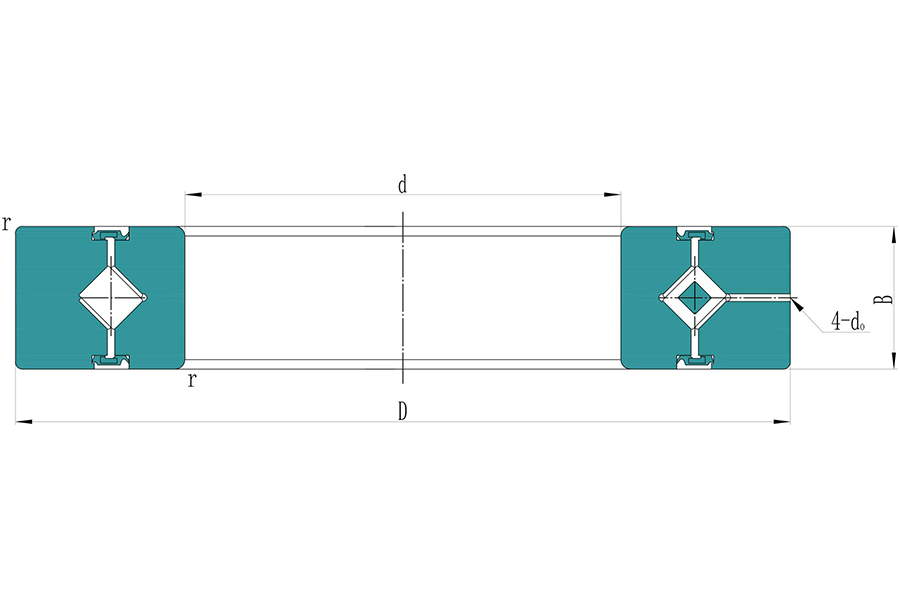

NO. | Product | Product Number | Mass | Type | Chamfer(r min) | Inner Diameter(d) | Outer Diameter(D) | Width(B B1) |
---|---|---|---|---|---|---|---|---|
1 | QRA 5008C UU | 0.08kg | Two Sides Seal | 0.5 | 50mm | 66 | 8mm | |
2 | QRA 6008C UU | 0.09kg | Two Sides Seal | 0.5 | 60mm | 76 | 8mm | |
3 | QRA 7008C UU | 0.1kg | Two Sides Seal | 0.5 | 70mm | 86 | 8mm | |
4 | QRA 8008C UU | 0.11kg | Two Sides Seal | 0.5 | 80mm | 96 | 8mm | |
5 | QRA 9008C UU | 0.12kg | Two Sides Seal | 0.5 | 90mm | 106 | 8mm | |
6 | QRA 10008C UU | 0.14kg | Two Sides Seal | 0.5 | 100mm | 116 | 8mm | |
7 | QRA 11008C UU | 0.15kg | Two Sides Seal | 0.5 | 110mm | 126 | 8mm | |
8 | QRA 12008C UU | 0.17kg | Two Sides Seal | 0.5 | 120mm | 136 | 8mm | |
9 | QRA 13008C UU | 0.18kg | Two Sides Seal | 0.5 | 130mm | 146 | 8mm | |
10 | QRA 14008C UU | 0.19kg | Two Sides Seal | 0.5 | 140mm | 156 | 8mm | |
11 | QRA 15008C UU | 0.2kg | Two Sides Seal | 0.5 | 150mm | 166 | 8mm | |
12 | QRA 16013C UU | 0.59kg | Two Sides Seal | 0.8 | 160mm | 186 | 13mm | |
13 | QRA 17013C UU | 0.64kg | Two Sides Seal | 0.8 | 170mm | 196 | 13mm | |
14 | QRA 18013C UU | 0.68kg | Two Sides Seal | 0.8 | 180mm | 206 | 13mm | |
15 | QRA 19013C UU | 0.69kg | Two Sides Seal | 0.8 | 190mm | 216 | 13mm | |
16 | QRA 20013C UU | 0.71kg | Two Sides Seal | 0.8 | 200mm | 226 | 13mm |
