CRBH
The crossed roller bearing is a special type of bearing in which the inner ring is split and the outer ring rotates. Since the separated inner ring or outer ring is equipped with rollers and spacer rings, which are fixed together with the cross roller ring to prevent separation from each other, it is easy to install the cross roller bearing. Since the rollers are arranged in a cross, only one set of crossed roller bearings can bear loads in all directions.
Compared with standard bearings, the rigidity is increased by 3 to 4 times. At the same time, because the inner ring or outer ring of the crossed roller bearing is a separate structure, the bearing gap can be adjusted, and even if the preload is applied, high-precision rotational movement can be obtained. Moreover, due to its special structure, it is usually used as an articulated bearing in industrial robots.
QIBR
Model Selection

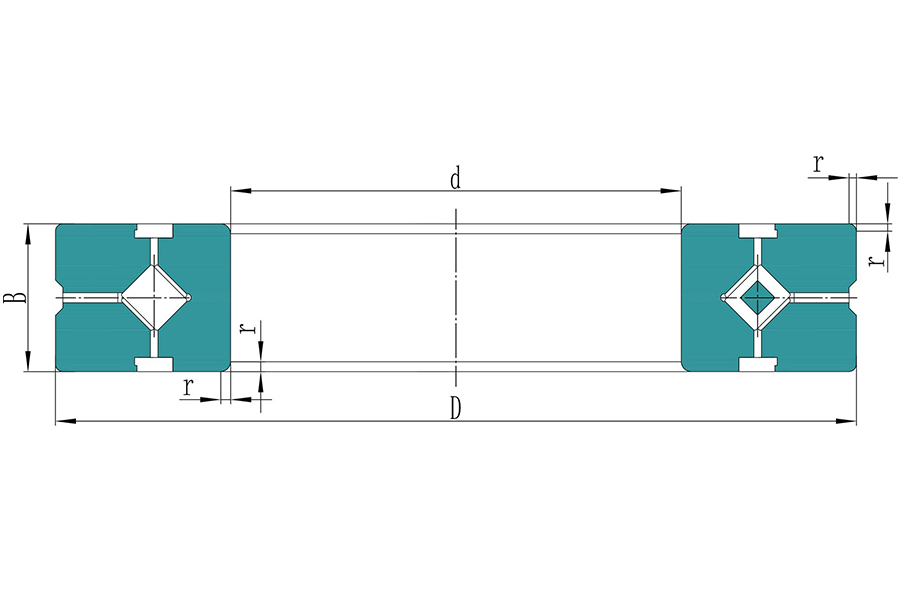

NO. | Product | Product Number | Outer Diameter (D) | Inner Diameter (d) | Weight | Type | Thickness | Chamfer r1min |
---|---|---|---|---|---|---|---|---|
1 | QCRBH 208 A | 36mm | 20mm | 0.04kg | Open | 8mm | 0.3 | |
2 | QCRBH 258 A | 41mm | 25mm | 0.05kg | Open | 8mm | 0.3 | |
3 | QCRBH 3010 A | 55mm | 30mm | 0.12kg | Open | 10mm | 0.3 | |
4 | QCRBH 3510 A | 60mm | 35mm | 0.13kg | Open | 10mm | 0.3 | |
5 | QCRBH 4010 A | 65mm | 40mm | 0.15kg | Open | 10mm | 0.3 | |
6 | QCRBH 4510 A | 70mm | 45mm | 0.16kg | Open | 10mm | 0.3 | |
7 | QCRBH 5013 A | 80mm | 50mm | 0.29kg | Open | 13mm | 0.6 | |
8 | QCRBH 6013 A | 90mm | 60mm | 0.33kg | Open | 13mm | 0.6 | |
9 | QCRBH 7013 A | 100mm | 70mm | 0.38kg | Open | 13mm | 0.6 | |
10 | QCRBH 8016 A | 120mm | 80mm | 0.74kg | Open | 16mm | 0.6 | |
11 | QCRBH 9016 A | 130mm | 90mm | 0.81kg | Open | 16mm | 0.6 | |
12 | QCRBH 10020 A | 150mm | 100mm | 1.45kg | Open | 20mm | 0.6 | |
13 | QCRBH 11020 A | 160mm | 110mm | 1.56kg | Open | 20mm | 0.6 | |
14 | QCRBH 12025 A | 180mm | 120mm | 2.62kg | Open | 25mm | 1 | |
15 | QCRBH 13025 A | 190mm | 130mm | 2.82kg | Open | 25mm | 1 | |
16 | QCRBH 14025 A | 200mm | 140mm | 2.96kg | Open | 25mm | 1 | |
17 | QCRBH 15025 A | 210mm | 150mm | 3.16kg | Open | 25mm | 1 | |
18 | QCRBH 20025 A | 260mm | 200mm | 4.0kg | Open | 25mm | 1 | |
19 | QCRBH 25025 A | 310mm | 250mm | 4.97kg | Open | 25mm | 1.5 |
