CRBF

The crossed roller bearing is a special type of bearing in which the inner ring is split and the outer ring rotates. Since the separated inner ring or outer ring is equipped with rollers and spacer rings, which are fixed together with the cross roller ring to prevent separation from each other, it is easy to install the cross roller bearing. Since the rollers are arranged in a cross, only one set of crossed roller bearings can bear loads in all directions. Compared with standard bearings, the rigidity is increased by 3 to 4 times. At the same time, because the inner ring or outer ring of the crossed roller bearing is a separate structure, the bearing gap can be adjusted, and even if the preload is applied, high-precision rotational movement can be obtained. Moreover, due to its special structure, it is usually used as an articulated bearing in industrial robots.

Стандарт

GB,ASTM/AISI,ГОСТ,BS,JIS,NF,DIN / VDEh

Материал

52100/100Cr6/SUJ2/Stainless Steel

Бренд

QIBR/OEM/Neutral

Упаковка

QIBR/Standard Industrial Package/OEM

Внутренний диаметр

10~80mm

Наружный диаметр

52~165mm

Применения

Aerospace Industry, Robotics, Medical Devices, Semiconductor Manufacturing Equipment, Optical Equipment, Industrial Machinery, Automotive, etc

QIBR Model Selection

Filters

Наружный диаметр (D)

Внутренний диаметр (d)

Вес

Тип

Толщина

Размер фаски (r1)

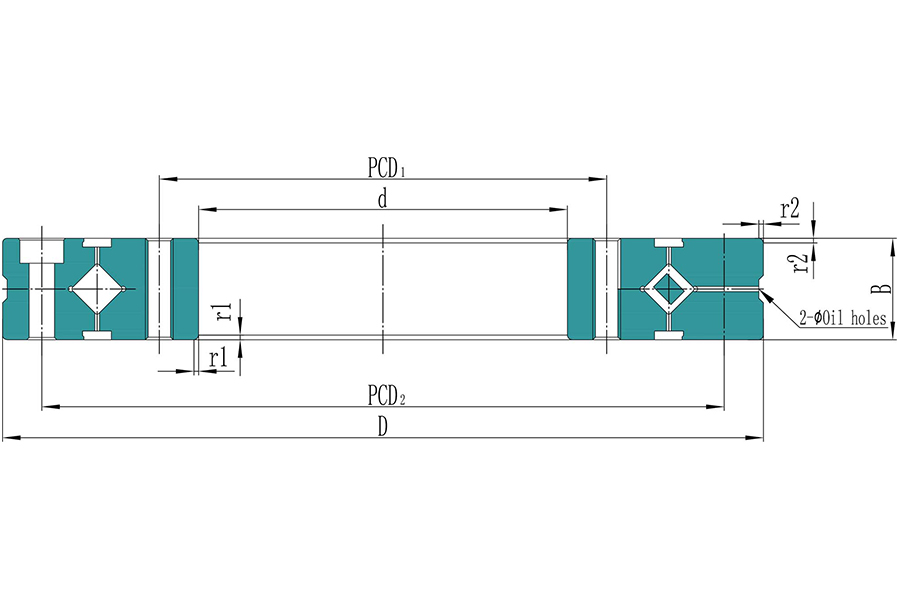

NO.	Product Number	Наружный диаметр (D)	Внутренний диаметр (d)	Вес	Тип	Толщина	Размер фаски (r1)
1	QCRBF 108 AT	52 mm	10 mm	0.12 kg	Open	8 mm	0.3 mm
2	QCRBF 2012 AT	70 mm	20 mm	0.31 kg	Open	12 mm	0.3 mm
3	QCRBF 2512 AT	80 mm	25 mm	0.40 kg	Open	12 mm	0.6 mm
4	QCRBF 3515 AT	95 mm	35 mm	0.66 kg	Open	15 mm	0.6 mm
5	QCRBF 5515 AT	120 mm	55 mm	0.96 kg	Open	15 mm	0.6 mm
6	QCRBF 8022 AT	165 mm	80 mm	2.63 kg	Open	22 mm	0.6 mm
7	QCRBF 8022 A	165 mm	80 mm	2.60 kg	Open	22 mm	0.6 mm
8	QCRBF 8022 AD	165 mm	80 mm	2.60 kg	Open	22 mm	0.6 mm

Features and advantages of QIBR Crossed Cylindrical Roller Bearings CRBF Series

QIBR Crossed Cylindrical Roller Bearings CRBF Series have many significant features and advantages, which can solve key problems in various fields, mainly in the following aspects:

1. QIBR crossed cylindrical roller bearings CRBF series have the characteristics of high rigidity and high load carrying capacity

QIBR Crossed Cylindrical Roller Bearings CRBF Series have good rigidity and load carrying capacity despite their compact design and are suitable for high load applications.

2. QIBR Crossed Cylindrical Roller Bearings CRBF Series Characteristics of optimized structural design

QIBR Crossed Cylindrical Roller Bearings CRBF Series are designed with mounting holes in the inner and outer rings for easy mounting to equipment and are not easily affected by surrounding structures such as shaft holes and platens, realizing high rigidity and high precision.

3. QIBR Crossed Cylindrical Roller Bearings CRBF Series low friction and high efficiency

QIBR Crossed Cylindrical Roller Bearings CRBF Series reduce bearing friction torque and are suitable for use where low driving torque is required, improving the overall operating efficiency of the equipment.

4. QIBR Crossed Cylindrical Roller Bearings CRBF Series Customized Service

QIBR Crossed Cylindrical Roller Bearings CRBF Series usually provide customized service, which can design the bearings according to the specific needs and meet the special requirements and working conditions of different industries.

QIBR Crossed Cylindrical Roller Bearings CRBF Series Performance Improvement and Solutions

1. Effective improvement of material properties to enhance high load carrying capacity

QIBR Crossed Cylindrical Roller Bearings CRBF Series are manufactured with high quality steel for the inner and outer rings and balls, and vacuum heat treatment is used to improve the surface hardness and material properties, thus increasing the load carrying capacity and service life of the bearings.

2. Improvement of manufacturing precision and load capacity

QIBR Crossed Cylindrical Roller Bearings CRBF Series adopt foreign advanced processing equipment and technology, such as precision grinding, etc., to improve the geometric accuracy of the inner and outer rings and balls, reduce processing errors, thus improving the rotational accuracy and stability of the bearing.

3. Personalized design

For different occasions on the QIBR Crossed Cylindrical Roller Bearings CRBF Series application requirements, to provide personalized structure and size of the program to meet specific performance requirements. This approach not only enriches the standard of bearings, but also provides effective guidance for manufacturers to meet the individual needs of users.

In a word, through optimizing materials, manufacturing precision, personalized design and other measures, the performance of QIBR Crossed Cylindrical Roller Bearings CRBF Series can be significantly improved to meet the increasingly demanding application requirements.

QIBR Crossed Cylindrical Roller Bearings CRBF Series Main Application Areas

Machine Tools

QIBR Crossed Cylindrical Roller Bearings CRBF Series improve the machining accuracy of machine tools and ensure the production of high quality parts. Crossed roller bearings are able to withstand large radial and axial loads simultaneously. This makes them suitable for handling compound load situations in machine tools.

Machine Arm

QIBR Crossed Cylindrical Roller Bearings CRBF Series can provide extremely high positioning accuracy, and the high precision positioning ensures the robot's operation accuracy and repeatability.QIBR Crossed Cylindrical Roller Bearings CRBF series are widely used in the joints and transmission systems of robotic arms to improve their motion accuracy and stability.

Medical Equipment

The high rigidity and vibration resistance of QIBR Crossed Cylindrical Roller Bearings CRBF Series enable them to provide stable support in medical equipment. This is especially important for equipment that requires precise positioning and operation.
