The crossed roller bearing is a special type of bearing in which the inner ring is split and the outer ring rotates. Since the separated inner ring or outer ring is equipped with rollers and spacer rings, which are fixed together with the cross roller ring to prevent separation from each other, it is easy to install the cross roller bearing. Since the rollers are arranged in a cross, only one set of crossed roller bearings can bear loads in all directions. Compared with standard bearings, the rigidity is increased by 3 to 4 times. At the same time, because the inner ring or outer ring of the crossed roller bearing is a separate structure, the bearing gap can be adjusted, and even if the preload is applied, high-precision rotational movement can be obtained. Moreover, due to its special structure, it is usually used as an articulated bearing in industrial robots.

Стандарт

GB,ASTM/AISI,ГОСТ,BS,JIS,NF,DIN / VDEh

Материал

52100/100Cr6/SUJ2/Stainless Steel

Бренд

QIBR/OEM/Neutral

Упаковка

QIBR/Standard Industrial Package/OEM

Внутренний диаметр

30~300mm

Наружный диаметр

55~360mm

Применения

Aerospace Industry, Robotics, Medical Devices, Semiconductor Manufacturing Equipment, Optical Equipment, Industrial Machinery, Automotive, etc

QIBR Model Selection

Filters

Наружный диаметр (D)

Внутренний диаметр (d)

Вес

Тип

Толщина

Размер фаски (r1)

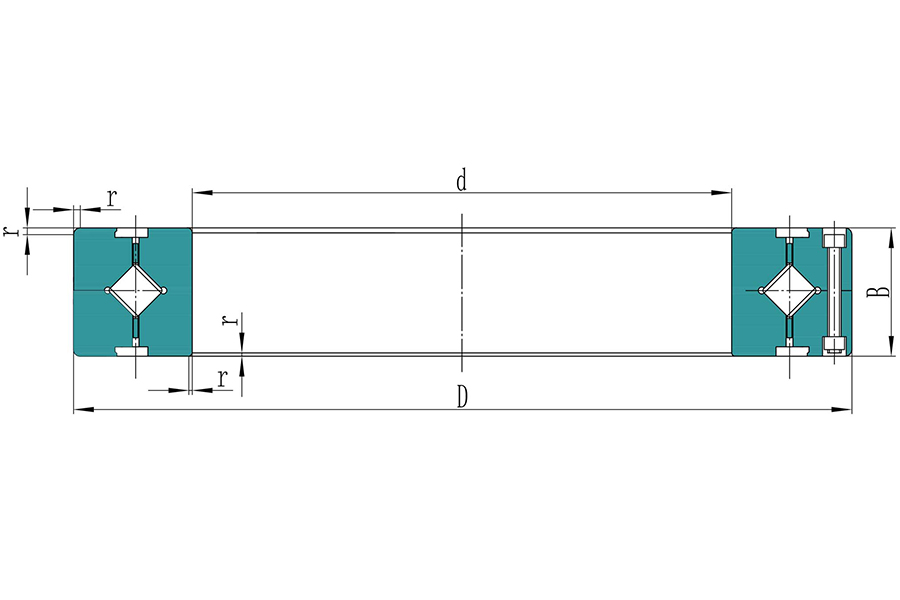

NO.	Product Number	Наружный диаметр (D)	Внутренний диаметр (d)	Вес	Тип	Толщина	Размер фаски (r1)
1	QCRBC 3010	55 mm	30 mm	0.12 kg	Open	10 mm	0.3 mm
2	QCRBC 4010	65 mm	40 mm	0.15 kg	Open	10 mm	0.3 mm
3	QCRBC 5013	80 mm	0.29 kg	Open	13 mm	0.6 mm
4	QCRBC 6013	90 mm	60 mm	0.33 kg	Open	13 mm	0.6 mm
5	QCRBC 7013	100 mm	70 mm	0.38 kg	Open	13 mm	0.6 mm
6	QCRBC 8016	120 mm	80 mm	0.74 kg	Open	16 mm	0.6 mm
7	QCRBC 9016	130 mm	90 mm	0.81 kg	Open	16 mm	1 mm
8	QCRBC 10020	150 mm	100 mm	1.45 kg	Open	20 mm	1 mm
9	QCRBC 11020	160 mm	110 mm	1.56 kg	Open	20 mm	1 mm
10	QCRBC 12025	180 mm	120 mm	2.62 kg	Open	25 mm	1.5 mm
11	QCRBC 13025	190 mm	130 mm	2.82 kg	Open	25 mm	1.5 mm
12	QCRBC 14025	200 mm	140 mm	2.96 kg	Open	25 mm	1.5 mm
13	QCRBC 15025	210 mm	150 mm	3.16 kg	Open	25 mm	1.5 mm
14	QCRBC 15030	230 mm	150 mm	5.3 kg	Open	30 mm	1.5 mm
15	QCRBC 20025	260 mm	200 mm	4.0 kg	Open	25 mm	2 mm
16	QCRBC 20030	280 mm	200 mm	6.7 kg	Open	30 mm	2 mm
17	QCRBC 20035	295 mm	200 mm	9.58 kg	Open	35 mm	2 mm
18	QCRBC 25025	310 mm	250 mm	4.97 kg	Open	25 mm	2.5 mm
19	QCRBC 25030	330 mm	250 mm	8.1 kg	Open	30 mm	2.5 mm
20	QCRBC 25040	355 mm	250 mm	14.8 kg	Open	40 mm	2.5 mm
21	QCRBC 30025	360 mm	300 mm	5.88 kg	Open	25 mm	2.5 mm
22	QCRBC 30035	395 mm	300 mm	13.4 kg	Open	35 mm	2.5 mm
23	QCRBC 30040	405 mm	300 mm	17.2 kg	Open	40 mm	2.5 mm
24	QCRBC 40035	480 mm	400 mm	14.5 kg	Open	35 mm	2.5 mm
25	QCRBC 40040	510 mm	400 mm	23.5 kg	Open	40 mm	2.5 mm
26	QCRBC 40070	580 mm	400 mm	72.4 kg	Open	70 mm	2.5 mm
27	QCRBC 50040	600 mm	500 mm	26.0 kg	Open	40 mm	2.5 mm
28	QCRBC 50050	625 mm	500 mm	41.7 kg	Open	50 mm	2.5 mm
29	QCRBC 50070	680 mm	500 mm	86.1 kg	Open	70 mm	2.5 mm
30	QCRBC 60040	700 mm	600 mm	30.6 kg	Open	40 mm	3 mm
31	QCRBC 60070	780 mm	600 mm	102 kg	Open	70 mm	3 mm
32	QCRBC 600120	870 mm	600 mm	274 kg	Open	120 mm	3 mm
33	QCRBC 70045	815 mm	700 mm	46.5 kg	Open	45 mm	3 mm
34	QCRBC 70070	880 mm	700 mm	115 kg	Open	70 mm	3 mm
35	QCRBC 700150	1020 mm	700 mm	478 kg	Open	150 mm	3 mm
36	QCRBC 80070	950 mm	109 kg	Open	70 mm	4 mm
37	QCRBC 800100	1030 mm	800 mm	247 kg	Open	100 mm	4 mm

Features and advantages of QIBR Crossed Cylindrical Roller Bearings CRBC Series

QIBR Crossed Cylindrical Roller Bearings CRBC Series have many significant features and advantages, which can solve key problems in various fields, mainly in the following aspects:

1. QIBR Crossed Cylindrical Roller Bearings CRBC Series have the characteristics of high rigidity and high load carrying capacity

QIBR Crossed Cylindrical Roller Bearings CRBC Series have good rigidity and load carrying capacity despite their compact design and are suitable for high load applications.

2. QIBR Crossed Cylindrical Roller Bearings CRBC Series Characteristics of optimized structural design

QIBR Crossed Cylindrical Roller Bearings CRBC Series have a split outer ring and a one-piece inner ring, so they are most suitable for applications that require rotational accuracy of the inner ring. With cage isolation blocks between rollers and rollers, the bearings rotate smoothly and are suitable for parts with high rotational speeds.

3. QIBR Crossed Cylindrical Roller Bearings CRBC Series low friction and high efficiency

QIBR Crossed Cylindrical Roller Bearings CRBC Series reduce bearing friction torque and are suitable for use where low driving torque is required, improving the overall operating efficiency of the equipment.

4. QIBR Crossed Cylindrical Roller Bearings CRBC Series Customized Service

QIBR Crossed Cylindrical Roller Bearings CRBC Series usually provide customized service, which can design the bearings according to the specific needs and meet the special requirements and working conditions of different industries.

QIBR Crossed Cylindrical Roller Bearings CRBC Series Performance Improvement and Solutions

1. Effective improvement of material properties to enhance high load carrying capacity

QIBR Crossed Cylindrical Roller Bearings CRBC Series are manufactured with high quality steel for the inner and outer rings and balls, and vacuum heat treatment is used to improve the surface hardness and material properties, thus increasing the load carrying capacity and service life of the bearings.

2. Improvement of manufacturing precision and load capacity

QIBR Crossed Cylindrical Roller Bearings CRBC Series adopt foreign advanced processing equipment and technology, such as precision grinding, etc., to improve the geometric accuracy of the inner and outer rings and balls, reduce processing errors, thus improving the rotational accuracy and stability of the bearing.

3. Personalized design

For different occasions on the QIBR Crossed Cylindrical Roller Bearings CRBC Series application requirements, to provide personalized structure and size of the program to meet specific performance requirements. This approach not only enriches the standard of bearings, but also provides effective guidance for manufacturers to meet the individual needs of users.

In a word, through optimizing materials, manufacturing precision, personalized design and other measures, the performance of QIBR Crossed Cylindrical Roller Bearings CRBC Series can be significantly improved to meet the increasingly demanding application requirements.

QIBR Crossed Cylindrical Roller Bearings CRBC Series Main Application Areas

CNC Machine Tools

QIBR Crossed Cylindrical Roller Bearings CRBCC series can improve the machining accuracy of machine tools and ensure the production of high quality parts. Crossed roller bearings are able to withstand large radial and axial loads at the same time. These bearings play a key role in the spindle and feed system of CNC machine tools, enhancing machining accuracy and productivity.

Rotary Table

QIBR Crossed Cylindrical Roller Bearings CRBC Series have high rigidity and can effectively withstand loads from all directions, which enables rotary tables to maintain higher stability and accuracy during operation.

Medical Equipment

The high rigidity and vibration resistance of QIBR Crossed Cylindrical Roller Bearings CRBC Series enable them to provide stable support in medical equipment. This is especially important for equipment that requires precise positioning and operation.
