CRB
The crossed roller bearing is a special type of bearing in which the inner ring is split and the outer ring rotates. Since the separated inner ring or outer ring is equipped with rollers and spacer rings, which are fixed together with the cross roller ring to prevent separation from each other, it is easy to install the cross roller bearing. Since the rollers are arranged in a cross, only one set of crossed roller bearings can bear loads in all directions.
Compared with standard bearings, the rigidity is increased by 3 to 4 times. At the same time, because the inner ring or outer ring of the crossed roller bearing is a separate structure, the bearing gap can be adjusted, and even if the preload is applied, high-precision rotational movement can be obtained. Moreover, due to its special structure, it is usually used as an articulated bearing in industrial robots.
QIBR
Model Selection

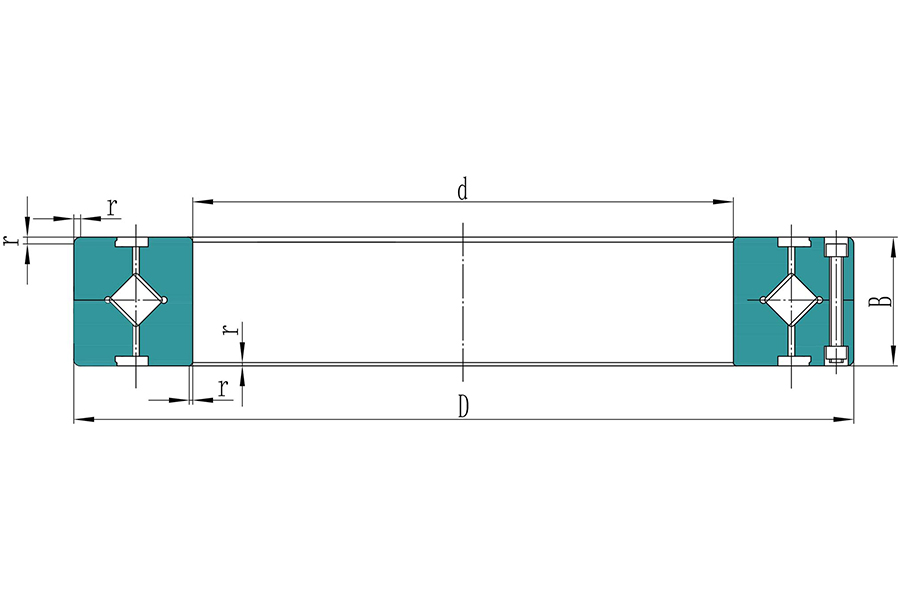

NO. | Product | Product Number | Outer Diameter (D) | Inner Diameter (d) | Weight | Type | Thickness | Chamfer r1min |
---|---|---|---|---|---|---|---|---|
1 | QCRB 3010 | 55mm | 30mm | 0.12kg | Open | 10mm | 0.3 | |
2 | QCRB 4010 | 65mm | 40mm | 0.15kg | Open | 10mm | 0.3 | |
3 | QCRB 5013 | 80mm | 50mm | 0.29kg | Open | 13mm | 0.6 | |
4 | QCRB 6013 | 90mm | 60mm | 0.33kg | Open | 13mm | 0.6 | |
5 | QCRB 7013 | 100mm | 70mm | 0.38kg | Open | 13mm | 0.6 | |
6 | QCRB 8016 | 120mm | 80mm | 0.74kg | Open | 16mm | 0.6 | |
7 | QCRB 9016 | 130mm | 90mm | 0.81kg | Open | 16mm | 1 | |
8 | QCRB 10020 | 150mm | 100mm | 1.45kg | Open | 20mm | 1 | |
9 | QCRB 11020 | 160mm | 110mm | 1.56kg | Open | 20mm | 1 | |
10 | QCRB 12025 | 180mm | 120mm | 2.62kg | Open | 25mm | 1.5 | |
11 | QCRB 13025 | 190mm | 130mm | 2.82kg | Open | 25mm | 1.5 | |
12 | QCRB 14025 | 200mm | 140mm | 2.96kg | Open | 25mm | 1.5 | |
13 | QCRB 15025 | 210mm | 150mm | 3.16kg | Open | 25mm | 1.5 | |
14 | QCRB 15030 | 230mm | 150mm | 5.3kg | Open | 30mm | 1.5 | |
15 | QCRB 20025 | 260mm | 200mm | 4.0kg | Open | 25mm | 2 | |
16 | QCRB 20030 | 280mm | 200mm | 6.7kg | Open | 30mm | 2 | |
17 | QCRB 20035 | 295mm | 200mm | 9.58kg | Open | 35mm | 2 | |
18 | QCRB 25025 | 310mm | 250mm | 4.97kg | Open | 25mm | 2.5 | |
19 | QCRB 25030 | 330mm | 250mm | 8.1kg | Open | 30mm | 2.5 | |
20 | QCRB 25040 | 355mm | 250mm | 14.8kg | Open | 40mm | 2.5 | |
21 | QCRB 30025 | 360mm | 300mm | 5.88kg | Open | 25mm | 2.5 | |
22 | QCRB 30035 | 395mm | 300mm | 13.4kg | Open | 35mm | 2.5 | |
23 | QCRB 30040 | 405mm | 300mm | 17.2kg | Open | 40mm | 2.5 | |
24 | QCRB 40035 | 480mm | 400mm | 14.5kg | Open | 35mm | 2.5 | |
25 | QCRB 40040 | 510mm | 400mm | 23.5kg | Open | 40mm | 2.5 | |
26 | QCRB 40070 | 580mm | 400mm | 72.4kg | Open | 70mm | 2.5 | |
27 | QCRB 50040 | 600mm | 500mm | 26.0kg | Open | 40mm | 2.5 | |
28 | QCRB 50050 | 625mm | 500mm | 41.7kg | Open | 50mm | 2.5 | |
29 | QCRB 50070 | 680mm | 500mm | 86.1kg | Open | 70mm | 2.5 | |
30 | QCRB 60040 | 700mm | 600mm | 30.6kg | Open | 40mm | 3 | |
31 | QCRB 60070 | 780mm | 600mm | 102kg | Open | 70mm | 3 | |
32 | QCRB 600120 | 870mm | 600mm | 274kg | Open | 120mm | 3 | |
33 | QCRB 70045 | 815mm | 700mm | 46.5kg | Open | 45mm | 3 | |
34 | QCRB 70070 | 880mm | 700mm | 115kg | Open | 70mm | 3 | |
35 | QCRB 700150 | 1020mm | 700mm | 478kg | Open | 150mm | 3 | |
36 | QCRB 80070 | 950mm | 800mm | 109kg | Open | 70mm | 4 | |
37 | QCRB 800100 | 1030mm | 800mm | 247kg | Open | 100mm | 4 |
