YRTS325
- Вес
- 25 kg

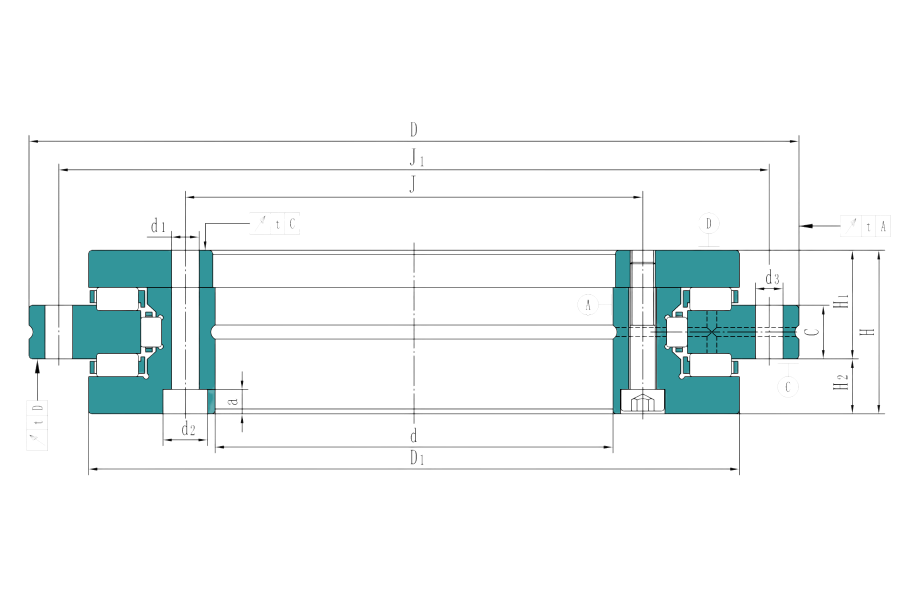

- Внутренний диаметр (d)
- 325 mm
- Наружный диаметр (D)
- 450 mm
Мы предложим вам самое подходящее решение.
Изображения могут отличаться от продукта. Подробнее см. технические характеристики.
Характеристики
Seris - YRTS325
Описание
YRTS325 YRT Turntable Bearings Features and Advantages
High load capacity: YRT turntable bearings can withstand axial loads, radial loads, and overturning moments, making them suitable for high-load applications.
High Precision: The dimensional accuracy is at P5 level, and the rotational accuracy is at P4 level, ensuring high rotational precision.
Superior Rigidity: These bearings exhibit higher stiffness when subjected to overturning moments, maintaining good performance under high load conditions.
Low Operating Noise: They generate low noise during operation, making them ideal for use in noise-sensitive environments.
Application: YRT turntable bearings are widely used in precision rotary tables, vertical grinding machines, indexing heads, gear hobbing machines, CNC machine tools, radar systems, and high-precision medical equipment.
QIBR - YRTS325 YRT Turntable Bearings Optimization
High-performance materials: The bearing materials can be replaced based on different working conditions, such as GCr15, GCr15SiMn, S165M, etc.
Cage Material: The cage material can be replaced according to customer requirements, such as using 20# steel, brass, or polyamide nylon.
Grease Replacement: The grease can be substituted with other lubricants, such as Mobilith SHC 220 or Shell Gadus S2 V220.
Grease replacement: QIBR technicians can recommend grease according to the working conditions of the bearing or replace grease according to customer needs, such as Mobil, Shell, SKF, Fuchs and other brands.
More customization: QIBR can design and optimize bearings based on customer specifications and operational requirements.
QIBR - YRTS325 YRT Turntable Bearings quality control
Dimension measurement: Various high-precision instruments are used to measure multiple dimensions of the bearings, achieving a maximum accuracy of 0.001mm.
Rotation accuracy: A dial gauge is employed to measure small defects or deviations on the bearing surface, with measurement accuracy reaching 0.001mm.
Hardness measurement: The surface hardness of the bearings is measured using a hardness tester, with an accuracy of ±0.5HRC.
Metallographic analysis: Professional metallographic microscopes are used to analyze the internal metallographic structure of the metal.
Geometric tolerance: A profile projector is used to measure the geometric shape and relative position of the bearings.
Noise monitoring: Vibration monitors are utilized to track the vibration conditions during operation, providing noise data.
Raw material control: Steel and components are sourced from suppliers with ISO 14001 certification, ensuring product stability while promoting sustainable development.
Особенности и преимущества
Подшипник поворотного стола серии YRT представляет собой поворотный механизм с вращающимся внешним кольцом и опорным внутренним кольцом. В основном он подразделяется на три серии: Тип YRT, Тип YRTS и Тип YRTM. Подшипники этих трех серий имеют одинаковые установочные размеры, но различную внутреннюю структуру и схожие рабочие характеристики. Подшипники серии YRT состоят из трех рядов роликов. Два ряда осевых роликов обеспечивают стабильную осевую грузоподъемность. Один ряд радиальных роликов гарантирует, что подшипник может выдерживать радиальную силу и опрокидывающий момент. Подходит для поворотных механизмов с осевой нагрузкой.
