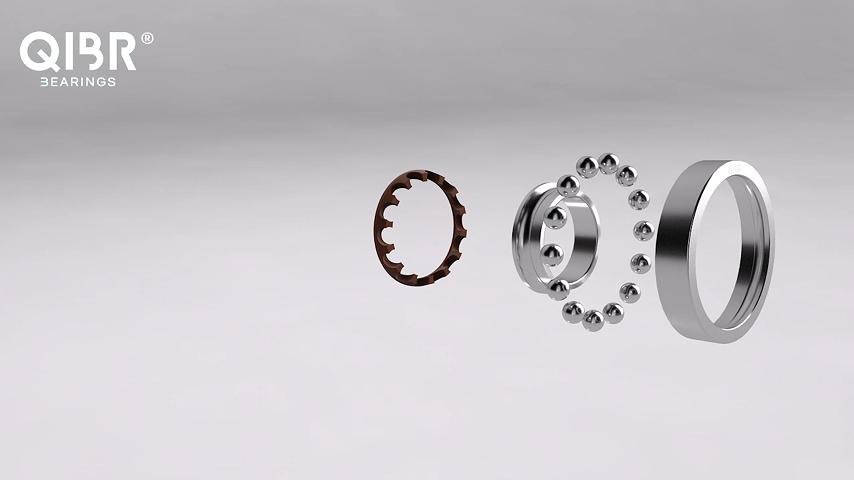

TAC B

Изображения могут отличаться от продукта. Подробнее см. технические характеристики.

Стандарт

GB,ASTM/AISI,ГОСТ,BS,JIS,NF,DIN / VDEh,DIN / VDEh

Диаметр внутреннего кольца

15-55mm

Диаметр наружного кольца

47mm-120mm

Тип

Open

Материал

SKF3, ZGCr15, Stainless Steel, Heat-resistant Steel, Ceramic

Бренд

QIBR/OEM/Neutral

Упаковка

QIBR/Standard Industrial Package/OEM

Применения

Turbines, Pumps, Raiway Vehicles, Machine Tool Spindles, Motor Plants, Medical Equipment.

Pairing method

DB, DF, DT, DBD, DBB, SU

Filters

NO. Product Product Number Размер фаски (r1) Внутренний диаметр (d) Наружный диаметр (D) Размер фаски (r) Тип Ширина (B)
1 15 15 TAC 47B 0.6 mm 15 mm 47 mm 1.0 mm Open 15 mm
2 17 17 TAC 47B 0.6 mm 17 mm 47 mm 1.0 mm Open 15 mm
3 20 20 TAC 47B 0.6 mm 20 mm 47 mm 1.0 mm Open 15 mm
4 25 25 TAC 62B 0.6 mm 25 mm 62 mm 1.0 mm Open 15 mm
5 30 30 TAC 62B 0.6 mm 30 mm 62 mm 1.0 mm Open 15 mm
6 35 35 TAC 72B 0.6 mm 35 mm 72 mm 1.0 mm Open 15 mm
7 40 40 TAC 72B 0.6 mm 40 mm 72 mm 1.0 mm Open 15 mm
8 40 40 TAC 90B 0.6 mm 40 mm 90 mm 1.0 mm Open 20 mm
9 45 45 TAC 75B 0.6 mm 45 mm 75 mm 1.0 mm Open 15 mm
10 45 45 TAC 100B 0.6 mm 45 mm 100 mm 1.0 mm Open 20 mm
11 50 50 TAC 100B 0.6 mm 50 mm 100 mm 1.0 mm Open 20 mm
12 55 55 TAC 100B 0.6 mm 55 mm 100 mm 1.0 mm Open 20 mm
13 55 55 TAC 120B 0.6 mm 55 mm 120 mm 1.0 mm Open 20 mm
14 60 60 TAC 120B 0.6 mm 60 mm 120 mm 1.0 mm Open 20 mm
15 15 15 TAC 47B DDG 0.6 mm 15 mm 47 mm 1.0 mm Sealed 15 mm
16 17 17 TAC 47B DDG 0.6 mm 17 mm 47 mm 1.0 mm Sealed 15 mm
17 20 20 TAC 47B DDG 0.6 mm 20 mm 47 mm 1.0 mm Sealed 15 mm
18 25 25 TAC 62B DDG 0.6 mm 25 mm 62 mm 1.0 mm Sealed 15 mm
19 30 30 TAC 62B DDG 0.6 mm 30 mm 62 mm 1.0 mm Sealed 15 mm
20 35 35 TAC 72B DDG 0.6 mm 35 mm 72 mm 1.0 mm Sealed 15 mm
21 40 40 TAC 72B DDG 0.6 mm 40 mm 72 mm 1.0 mm Sealed 15 mm
22 40 40 TAC 90B DDG 0.6 mm 40 mm 90 mm 1.0 mm Sealed 20 mm
23 45 45 TAC 100B DDG 0.6 mm 45 mm 100 mm 1.0 mm Sealed 20 mm
