BNR 10XE&BER 10XE

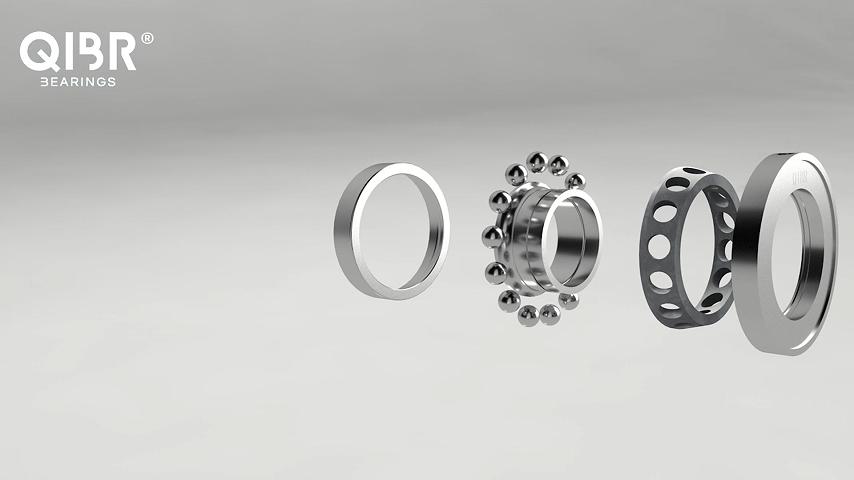

These bearings are part of the high-speed, super-precision angular contact ball bearings.

Filters

NO.	Product Number	Outer Diameter (D)	Inner Diameter (d)	Width (B)	Basic static load rating(Cor)	Mass(M)	Basic Dynamic Load Rating(Cr)
1	40BNR10XE	68mm	40mm	15mm	7.95KN	0.217kg	10.6KN
2	40BER10XE	68mm	40mm	15mm	7.65KN	0.217kg	10.1KN
3	45BNR10XE	75mm	45mm	16mm	9.00KN	0.273kg	11.7KN
4	45BER10XE	75mm	45mm	16mm	8.60KN	0.273kg	11.2KN
5	50BNR10XE	80mm	50mm	16mm	9.90KN	0.296kg	12.2KN
6	50BER10XE	80mm	50mm	16mm	9.50KN	0.296kg	11.6KN
7	55BNR10XE	90mm	55mm	18mm	12.50KN	0.433kg	15.1KN
8	55BER10XE	90mm	55mm	18mm	12.00KN	0.433kg	14.4KN
9	60BNR10XE	95mm	60mm	18mm	13.70KN	0.463kg	15.6KN
10	60BER10XE	95mm	60mm	18mm	13.10KN	0.463kg	15.0KN
11	65BNR10XE	100mm	65mm	18mm	14.80KN	0.493kg	16.2KN
12	65BER10XE	100mm	65mm	18mm	14.20KN	0.493kg	15.5KN
13	70BNR10XE	110mm	70mm	20mm	19.80KN	0.660kg	22.3KN
14	70BER10XE	110mm	70mm	20mm	18.90KN	0.660kg	21.3KN
15	75BNR10XE	115mm	75mm	22mm	20.70KN	0.697kg	22.6KN
16	75BER10XE	115mm	75mm	22mm	19.80KN	0.697kg	21.6KN
17	80BNR10XE	125mm	80mm	22mm	24.50KN	0.939kg	26.5KN
18	80BER10XE	125mm	80mm	22mm	23.50KN	0.939kg	25.3KN
19	85BNR10XE	135mm	80mm	22mm	25.70KN	0.988kg	26.8KN
20	85BER10XE	135mm	80mm	22mm	24.60KN	0.988kg	25.6KN
21	90BNR10XE	140mm	90mm	24mm	33.00KN	1.250kg	35.0KN
22	90BER10XE	140mm	90mm	24mm	31.50KN	1.250kg	33.5KN
23	95BNR10XE	145mm	95mm	24mm	34.50KN	1.300kg	35.5KN
24	95BER10XE	145mm	95mm	24mm	33.00KN	1.300kg	34.0KN
25	100BNR10XE	150mm	100mm	24mm	36.00KN	1.359kg	36.0KN
26	100BER10XE	150mm	100mm	24mm	34.50KN	1.359kg	34.5KN
27	105BNR10XE	160mm	105mm	26mm	41.00KN	1.707kg	41.0KN
28	105BER10XE	160mm	105mm	26mm	39.50KN	1.707kg	39.0KN
29	110BNR10XE	170mm	110mm	28mm	47.00KN	2.139kg	46.0KN
30	110BER10XE	170mm	110mm	28mm	45.00KN	2.139kg	44.0KN
