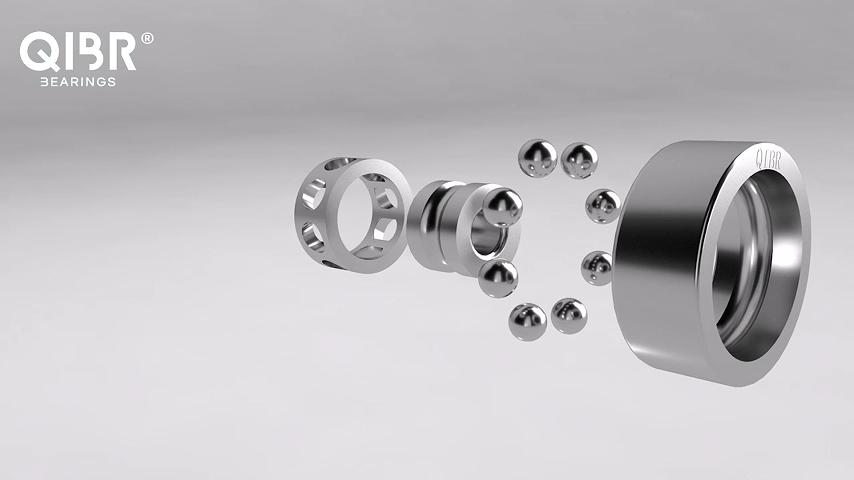

Miniature Angular Contact Ball Bearing

Miniature angular contact ball bearings can withstand both radial and axial loads.

Standard:

GB,ASTM/AISI,ГОСТ,BS,JIS,NF,DIN / VDEh,DIN / VDEh

Range of Inner Ring Dia.:

3mm-50mm

Range of Outer Ring Dia.:

10mm-110mm

Range of Weight:

1.6g-1140g

Material

GCr15

Brand:

QIBR/OEM/Neutral

Package:

QIBR/Standard Industrial Package/OEM

Applications:

Machine tool spindle, centrifuge, booster pump, oil pump, blower, various gearboxes, laboratory equipment

QIBR

Model Selection

Filters

NO. Product Product Number Outer Diameter (D) Inner Diameter (d) Width (B) Basic dynamic load rating (Cr) Basic static load rating(Cor) Limiting Speeds (Grease) Mass (M) Limiting Speeds (Oil)
1 723C/ 723C 10mm 3mm 4mm 650N 240N 95000 1.6g 100000
2 719/4C/ 719/4C 11mm 4mm 4mm 720N 290N 93000 1.8g 98000
3 724C/ 724C 13mm 4mm 5mm 1330N 510N 88000 3.2g 93000
4 719/5C/ 719/5C 13mm 5mm 4mm 1090N 440N 85000 2.4g 90000
5 705C/ 705C 14mm 5mm 5mm 1550N 520N 83000 3.5g 88000
6 725C/ 725C 16mm 5mm 5mm 1770N 690N 80000 4.8g 85000
7 719/6C/ 719/6C 15mm 6mm 5mm 1306N 540N 80000 3.8g 85000
8 706C/ 706C 17mm 6mm 6mm 2030N 770N 75000 6g 80000
9 726C/ 726C 19mm 6mm 6mm 2770N 1260N 80000 8.1g 110000
10 719/7C/ 719/7C 17mm 7mm 5mm 1620N 720N 70000 5.2g 75000
11 707C/ 707C 19mm 7mm 6mm 2400N 1020N 68000 7.9g 73000
12 727C/ 727C 22mm 7mm 7mm 3360N 1400N 67000 13g 71000
13 719/8C/ 719/8C 19mm 8mm 6mm 2000N 870N 64000 7.3g 68000
14 708C/ 708C 22mm 8mm 7mm 3360N 1400N 62000 12g 66000
15 728C/ 728C 24mm 8mm 8mm 4100N 1600N 59000 17g 63000
16 719/9C/ 719/9C 20mm 9mm 6mm 2500N 1100N 61000 8.2g 65000
17 709C/ 709C 24mm 9mm 7mm 3900N 1500N 58000 15g 62000
18 729C/ 729C 26mm 9mm 8mm 4900N 2100N 56000 20g 60000
19 7800C/ 7800C 19mm 10mm 5mm 1900N 980N 75000 54g 123000
20 7900C/ 7900C 22mm 10mm 6mm 3150N 1520N 71900 90g 109000
21 7000C/ 7000C 26mm 10mm 8mm 5500N 2490N 60000 19g 110000
22 7200C/ 7200C 30mm 10mm 9mm 5650N 2610N 57500 32g 87500
23 7300C/ 7300C 35mm 10mm 11mm 9300N 4300N 16000 53g 22000
24 7801C/ 7801C 21mm 12mm 5mm 2000N 1400N 70000 60g 110000
25 7901C/ 7901C 24mm 12mm 6mm 3550N 1860N 63900 11g 97300
26 7001C/ 7001C 28mm 12mm 8mm 6100N 2900N 57500 21g 87500
27 7201C/ 7201C 32mm 12mm 10mm 8300N 3850N 52300 36g 76900
29 7301C/ 7301C 37mm 12mm 12mm 10800N 4900N 33000 63g 45000
30 7802C/ 7802C 24mm 15mm 5mm 2200N 1800N 60000 70g 90000
31 7902C/ 7902C 28mm 15mm 7mm 4800N 3400N 53000 20g 80000
32 7002C/ 7002C 32mm 15mm 9mm 6550N 3400N 49000 26g 74500
33 7202C/ 7202C 35mm 15mm 11mm 9100N 4550N 46000 45g 70000
34 7302C/ 7302C 42mm 15mm 13mm 13300N 6805N 28000 85g 39000
35 7803C/ 7803C 26mm 17mm 5mm 2300N 1900N 53000 80g 80000
36 7903C/ 7903C 30mm 17mm 7mm 5250N 2940N 49000 107g 74500
37 7003C/ 7003C 35mm 17mm 10mm 6960N 3800N 44300 39g 67400
38 7203C/ 7203C 40mm 17mm 12mm 11400N 5850N 40400 65g 61500
39 7303C/ 7303C 47mm 17mm 14mm 15700N 8250N 26000 109g 35000
40 7804C/ 7804C 32mm 20mm 7mm 3900N 3400N 45000 18g 67000
41 7904C/ 7904C 37mm 20mm 9mm 7400N 5800N 40000 20g 60000
42 7004C/ 7004C 42mm 20mm 12mm 1170N 6550N 37100 71g 56500
43 7204C/ 7204C 47mm 20mm 14mm 15300N 8050N 34400 103g 52300
44 7304C/ 7304C 52mm 20mm 15mm 18500N 9950N 23000 140g 31000
45 7805C/ 7805C 37mm 25mm 7mm 3900N 3300N 36000 123g 53000
46 7905C/ 7905C 42mm 25mm 9mm 8150N 5700N 32000 326g 48000
47 7005C/ 7005C 47mm 25mm 12mm 1230N 7400N 32000 78g 48700
48 7205C/ 7205C 52mm 25mm 15mm 17400N 10200N 29900 127g 45500
49 7305C/ 7305C 62mm 25mm 17mm 22900N 13300N 10000 243g 14000
50 7806C/ 7806C 42mm 30mm 7mm 4400N 3650N 30000 129g 45000
51 7906C/ 7906C 47mm 30mm 9mm 8700N 6250N 29000 49g 45500
52 7006C/ 7006C 55mm 30mm 13mm 13590N 9890N 19000 130g 25000
53 7206C/ 7206C 62mm 30mm 16mm 23000N 14700N 18000 208g 24000
54 7306B/ 7306B 72mm 30mm 19mm 27600N 17400N 87000 141g 12000
55 7807C/ 7807C 47mm 35mm 7mm 4600N 5500N 26000 29g 40000
56 7907C/ 7907C 55mm 35mm 10mm 12700N 9150N 25600 74g 38900
57 7007C/ 7007C 62mm 35mm 14mm 20100N 13700N 23800 151g 36100
58 7207C/ 7207C 72mm 35mm 17mm 19900N 14400N 24500 28g 32800
59 7307B/ 7307B 80mm 35mm 21mm 32500N 20200N 7700 475g 10000
60 7808C/ 7808C 52mm 40mm 7mm 4800N 6200N 24000 32g 38000
61 7908C/ 7908C 62mm 40mm 12mm 15900N 11700N 22600 109g 34400
62 7008C/ 7008C 68mm 40mm 15mm 21600N 15900N 21300 189g 32500
63 7208C/ 7208C 80mm 40mm 18mm 32850N 24190N 13000 366g 18000
64 7308B/ 7308B 90mm 40mm 23mm 39700N 25200N 6900 657g 9200
65 7809C/ 7809C 58mm 45mm 7mm 4900N 6700N 20000 400g 34000
66 7909C/ 7909C 68mm 45mm 12mm 16800N 13400N 20400 129g 31000
67 7009C/ 7009C 75mm 45mm 16mm 25600N 19300N 19200 238g 29200
68 7209C/ 7209C 85mm 45mm 19mm 43000N 28800N 17700 406g 27000
69 7309C/ 7309C 100mm 45mm 25mm 64000N 43000N 11000 415g 15000
70 7810C/ 7810C 65mm 50mm 7mm 74000N 10000N 18000 52g 30000
71 7910C/ 7910C 72mm 50mm 12mm 17700N 15000N 18900 130g 28700
72 7010C/ 7010C 80mm 50mm 16mm 27300N 21900N 17700 259g 27000
73 7210C/ 7210C 90mm 50mm 20mm 45000N 31500N 16500 457g 25000
74 7310B/ 7310B 110mm 50mm 27mm 64400N 44300N 55000 1140g 73000
